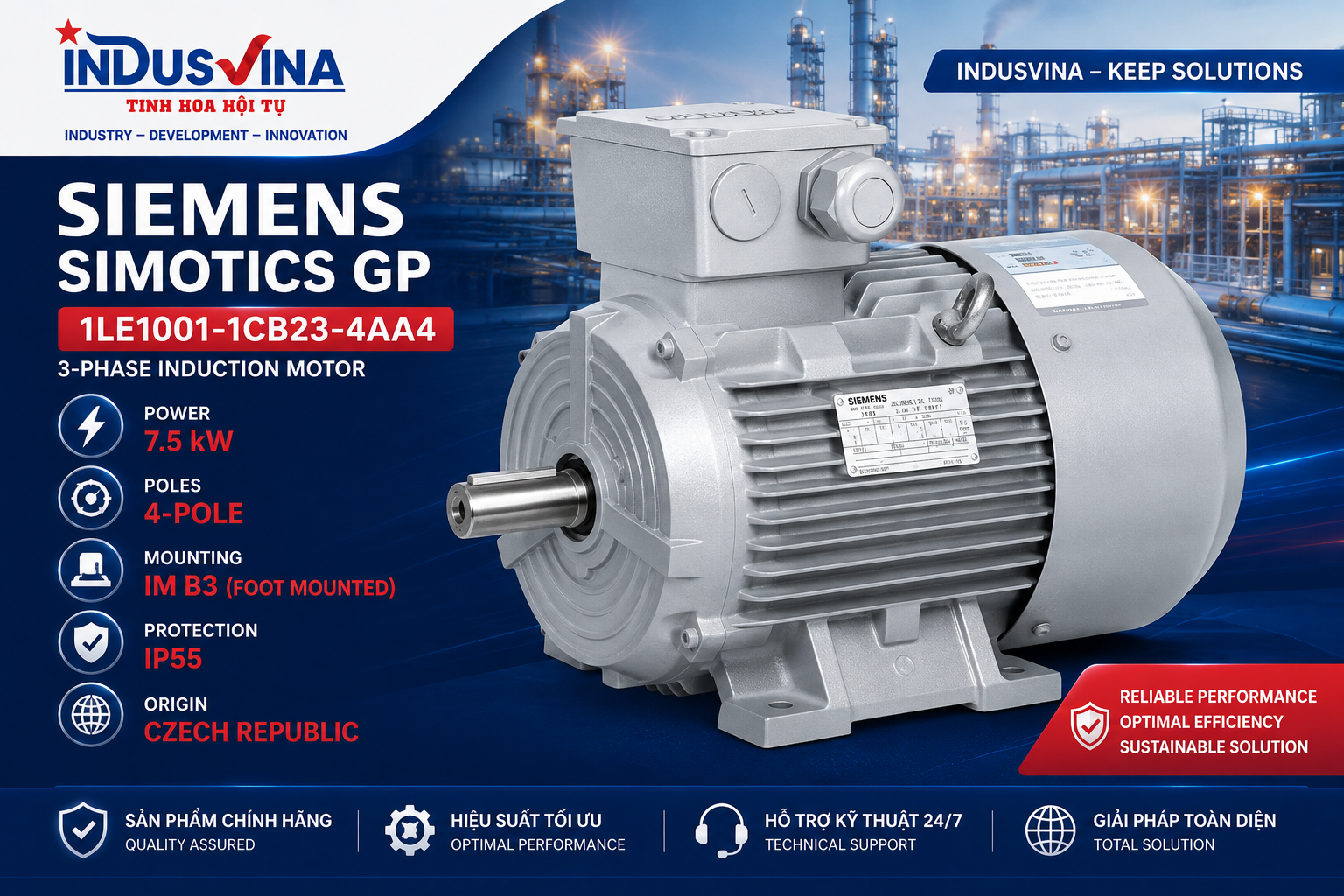

Siemens SIMOTICS GP Motor 1LE1001-1CB23-4AA4 – 7.5 kW, 4-pole, IM B3, IP55
QUICK SPECS
PRODUCT TECHNICAL SPECIFICATIONS
REFERENCE DOCUMENTS
Datasheets, manuals, catalogues, certificates and other available product documents.
Overview
Three-phase Siemens SIMOTICS GP induction motor, 7.5 kW at 50 Hz, 4 poles, frame 132M, IM B3 foot mounting and IP55 protection.
Three-phase Siemens SIMOTICS GP induction motor, 7.5 kW at 50 Hz, 4 poles, frame 132M, IM B3 foot mounting and IP55 protection.
Ứng dụng
- Bơm, quạt, băng tải và máy công nghiệp
- Thay thế động cơ 3 pha IEC khung 132M
- Ứng dụng vận hành liên tục S1
Applications & selection
Suitable for continuous-duty industrial drives such as pumps, fans, conveyors, machine tools and production machinery; verify torque, starting method, environment and mounting before selection.
Typical applications
- Centrifugal pumps, fans and ventilation systems.
- Conveyors, screw conveyors and material-handling equipment.
- Machine tools, packaging machines and production equipment with steady loads.
- IEC motor replacement where electrical and mechanical interfaces match.
Selection checks
- Supply, rated power, speed/poles and required torque.
- Mounting, frame size, terminal-box position and mechanical coupling.
- Degree of protection, cooling method, insulation/temperature class and environment.
- DOL, star-delta or VFD operation and required thermal protection.
Available reference data: Rated power / Công suất: 7.5 kW, Poles / Số cực: 4, Frame size: 132M, Voltage 50 Hz: 400 Δ / 690 Y V, Rated speed 50 Hz: 1465 rpm
Documents & guides
4 document/video source(s) are linked for specification, selection, installation and operation checks. Verified manufacturer sources are prioritized.
