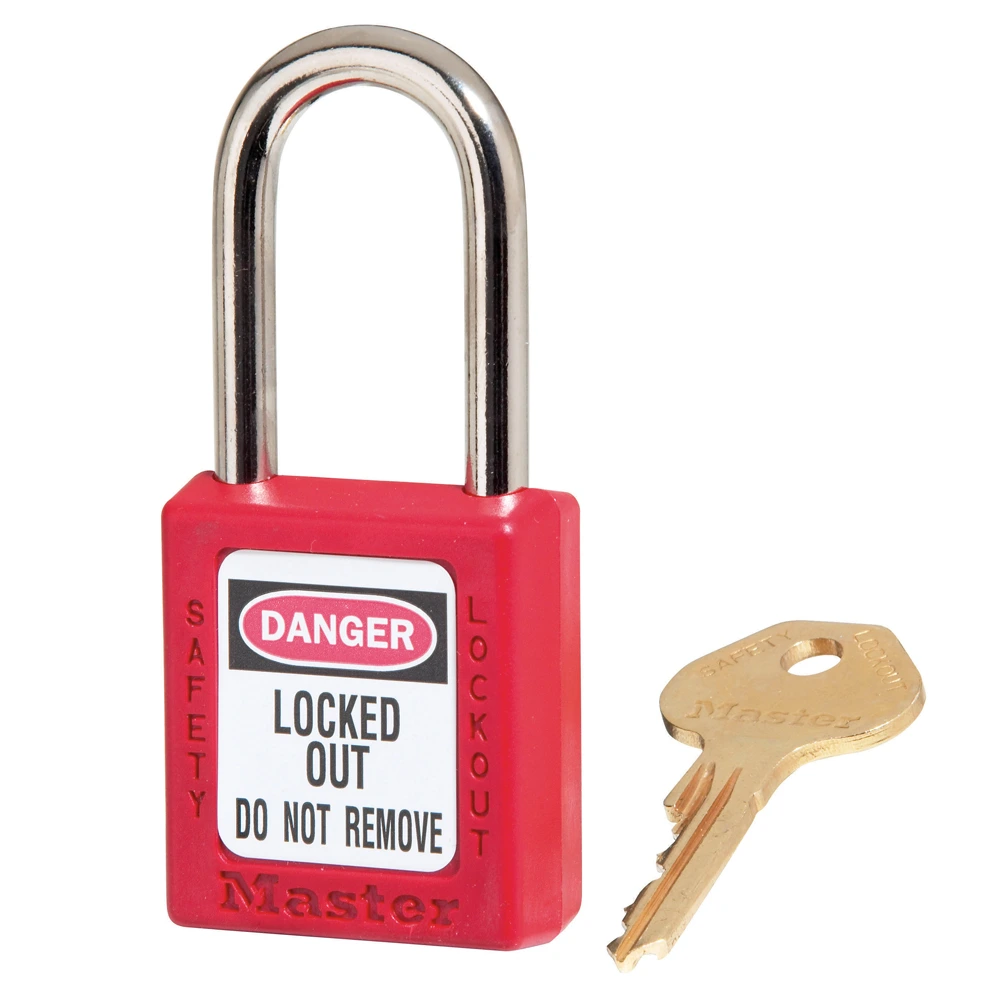

Master Lock 410RED Safety Padlock

Product SKU: IVN-0CB31C8DB123B19E
Selected variant SKU: IVN-357-VEECD7EE601

VARIANT / SKU

ConfigurationSKUAvailability
Ổ khóa an toàn Master Lock 410REDỔ khóa an toàn Master Lock 410REDIVN-357-VEECD7EE601ContactMOQ: Confirmed with quotationLead time: Confirmed with quotation
Cấu hình tiêu chuẩn 410REDKeyed Different38 mmRedIVN-357-V9F36BBD49AContactMOQ: Confirmed with quotationLead time: Confirmed with quotation
Original totalContact for price
ContactStock: Confirmed with quotationMOQ: Confirmed with quotationLead time: Confirmed with quotation

Availability, order quantity and delivery time are confirmed for the selected configuration in the quotation.

Red LOTO safety padlock referenced to Master Lock model 410RED. INDUSVINA acts as the supply brand on an RFQ/CONTACT basis.

QUICK SPECS

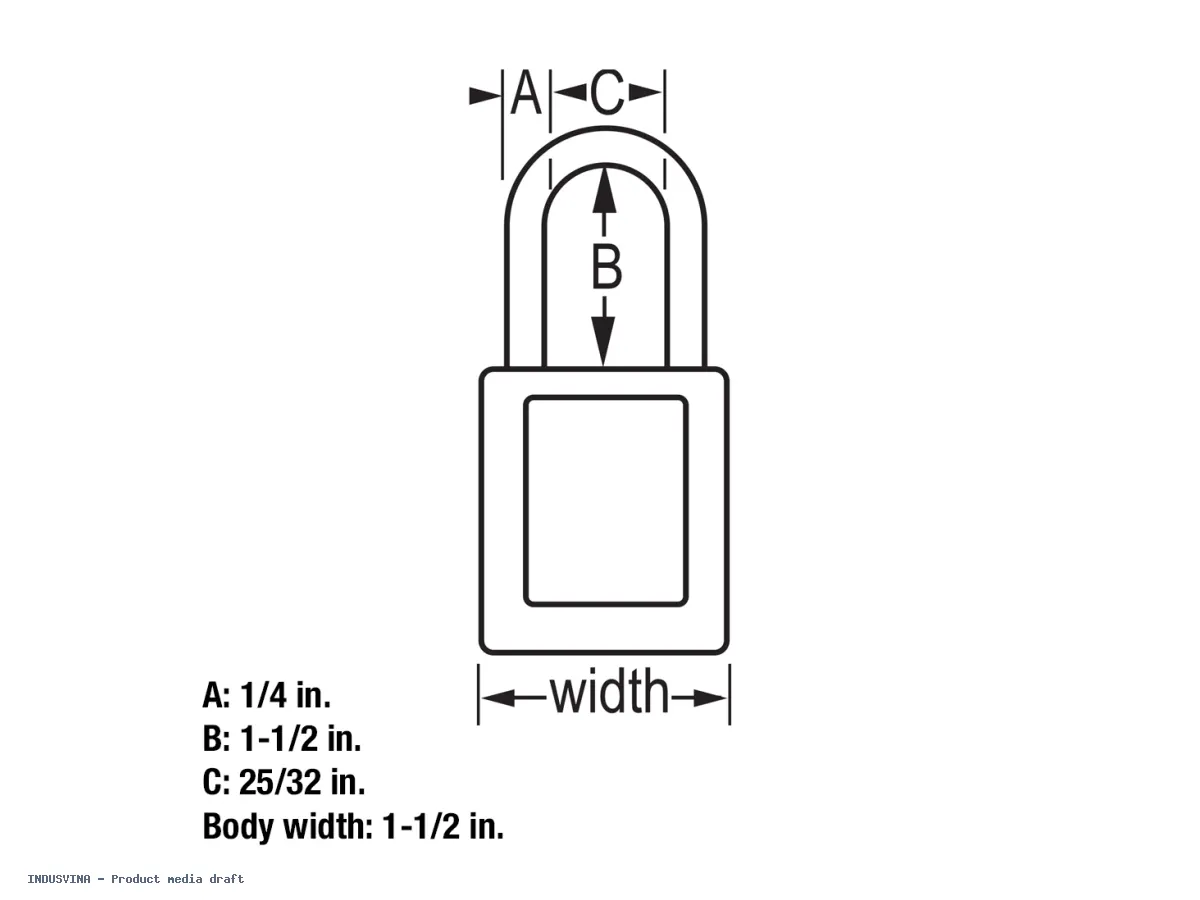

Body width38 mmReference
Body height44 mmReference
Shackle diameter6 mmReference
Shackle clearance38 mmReference
Shackle width20 mmReference

PRODUCT TECHNICAL SPECIFICATIONS

19 specs
Lock body material Thermoplastic Other source Sourced proposal
Color Red Other source Sourced proposal
Body width 38 mm Other source Sourced proposal
Body height 44 mm Other source Sourced proposal
Shackle diameter 6 mm Other source Sourced proposal
Shackle clearance 38 mm Other source Sourced proposal
Shackle width 20 mm Other source Sourced proposal
Key-retaining feature Key retaining Other source Sourced proposal
Manufacturer-stated application Lockout Tagout Other source Sourced proposal
Shackle material Plated metal Other source Sourced proposal
Lock body electrical property Non-conductive Other source Sourced proposal
Standard keying for 410RED configuration Keyed Different Other source Sourced proposal
Cylinder pin count 6 pin Other source Sourced proposal
Available key changes Over 40,000 key changes Other source Sourced proposal
Cylinder type High-security, reserved-for-safety cylinder Other source Sourced proposal
On-site identification label Permanent write-on label compatible Other source Sourced proposal
Included label languages English, Spanish and French Other source Sourced proposal
Shelf pack quantity 6 locks Other source Sourced proposal
Master carton quantity 36 locks Other source Sourced proposal

REFERENCE DOCUMENTS

Datasheets, manuals, catalogues, certificates and other available product documents.

4 documents
PRODUCT INFORMATION
Overview

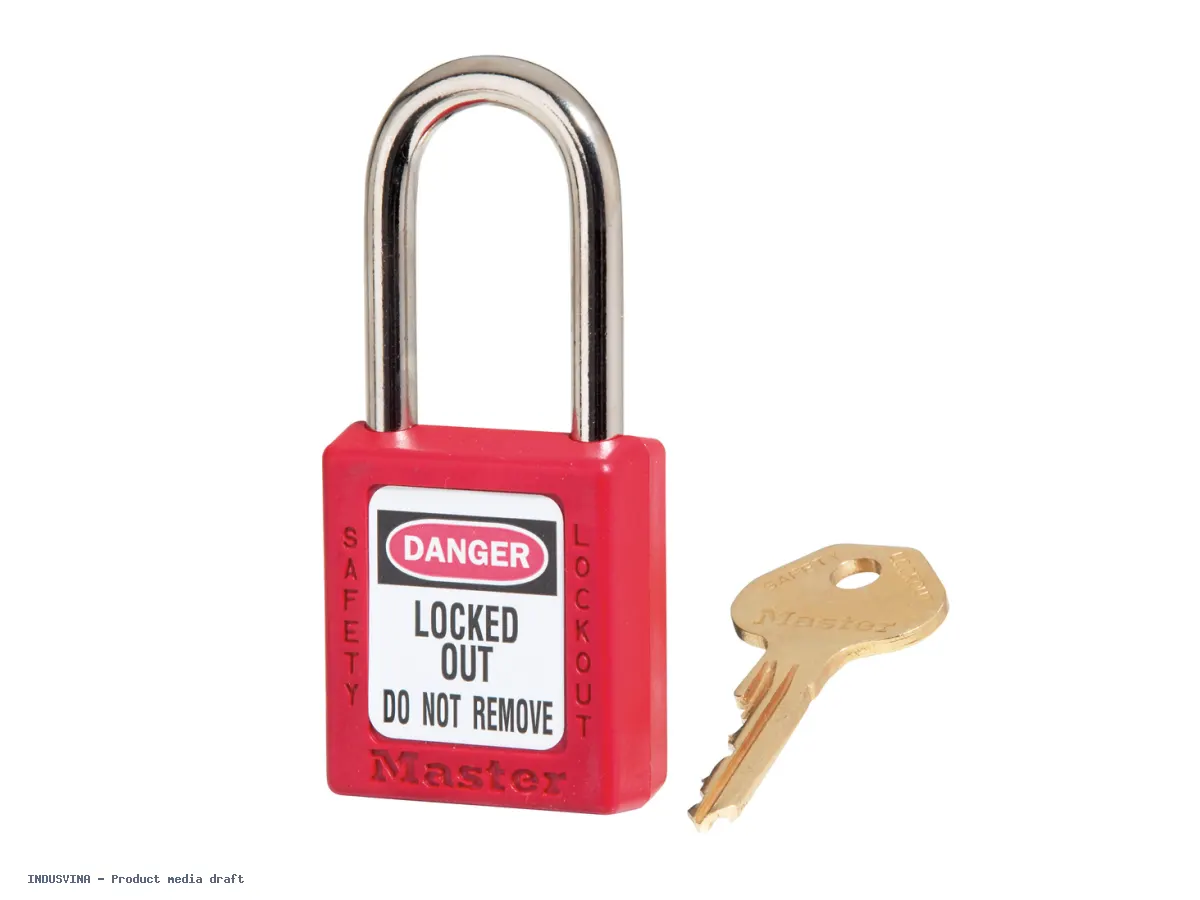

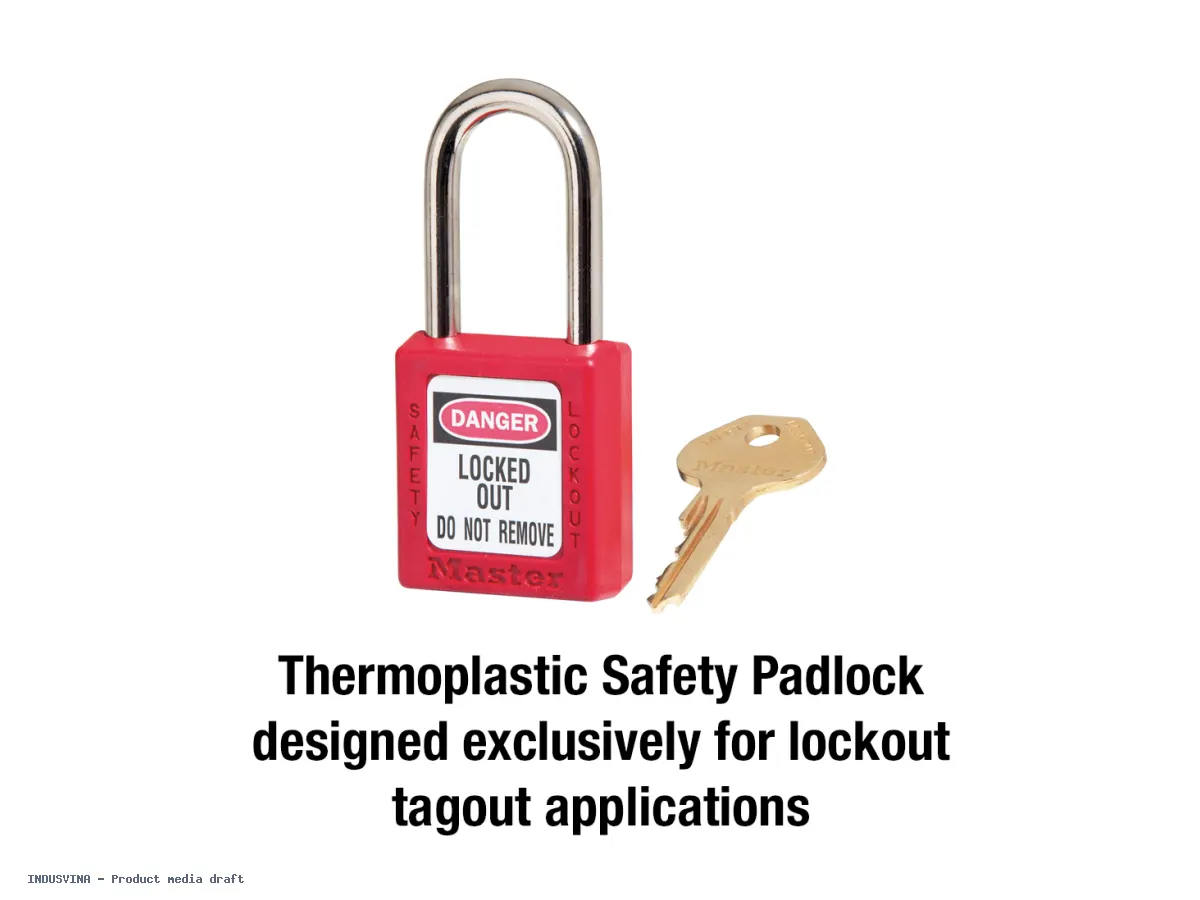

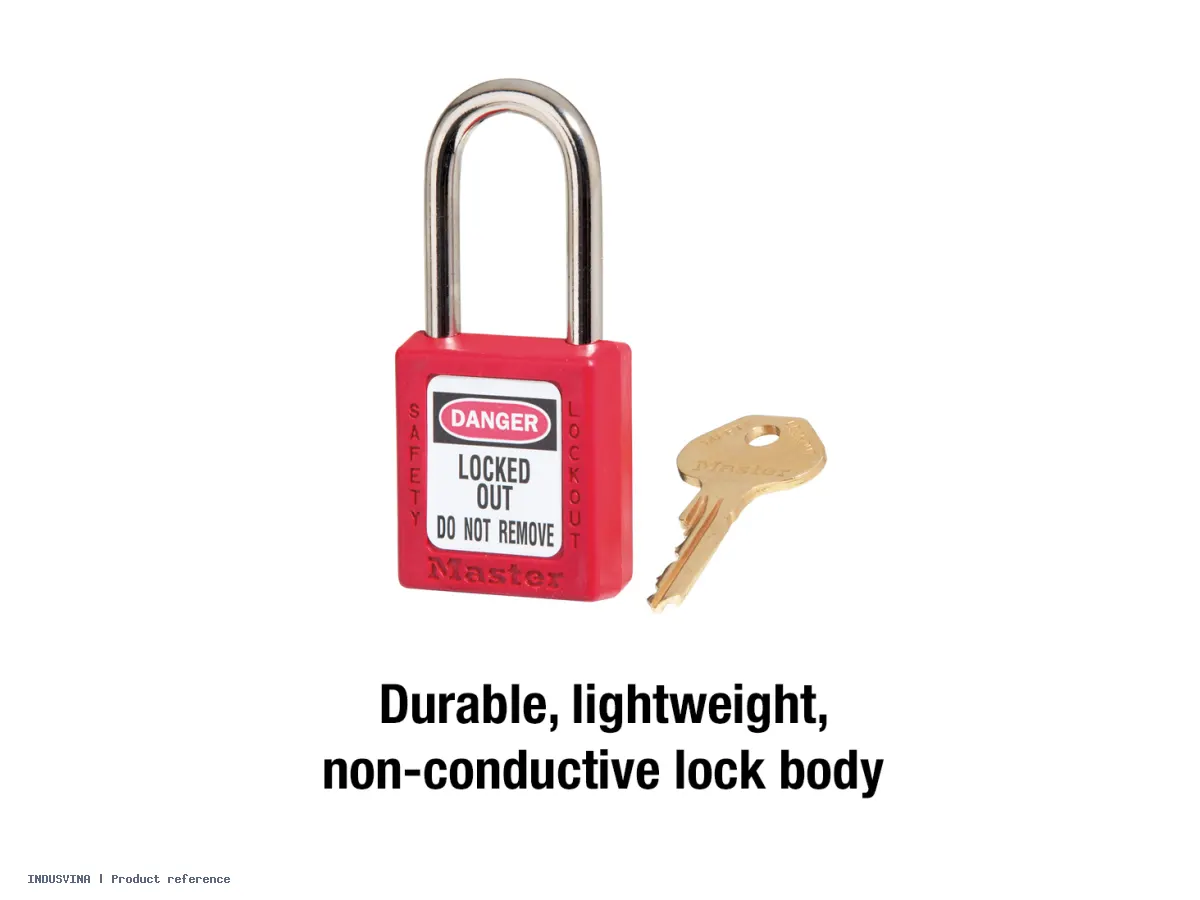

Master Lock 410RED is cross-referenced to Master Lock’s official product page and product data sheet as a red Zenex™ Thermoplastic safety padlock for Lockout/Tagout (LOTO) applications. The manufacturer describes a lightweight, non-conductive thermoplastic body, a metal shackle, and a key-retaining feature intended to help prevent the padlock from being left unlocked. It should only be used at a compatible energy-isolation point or lockout hasp within the operating organization’s approved energy-control program. INDUSVINA is the supply brand, not the manufacturer. The actual keying arrangement, supplied labels, country of origin, packing, availability, and batch-specific delivery details for SKU IVN-0CB31C8DB123B19E must be confirmed by quotation, actual-item photographs, and batch documents before purchase.

Applications & selection

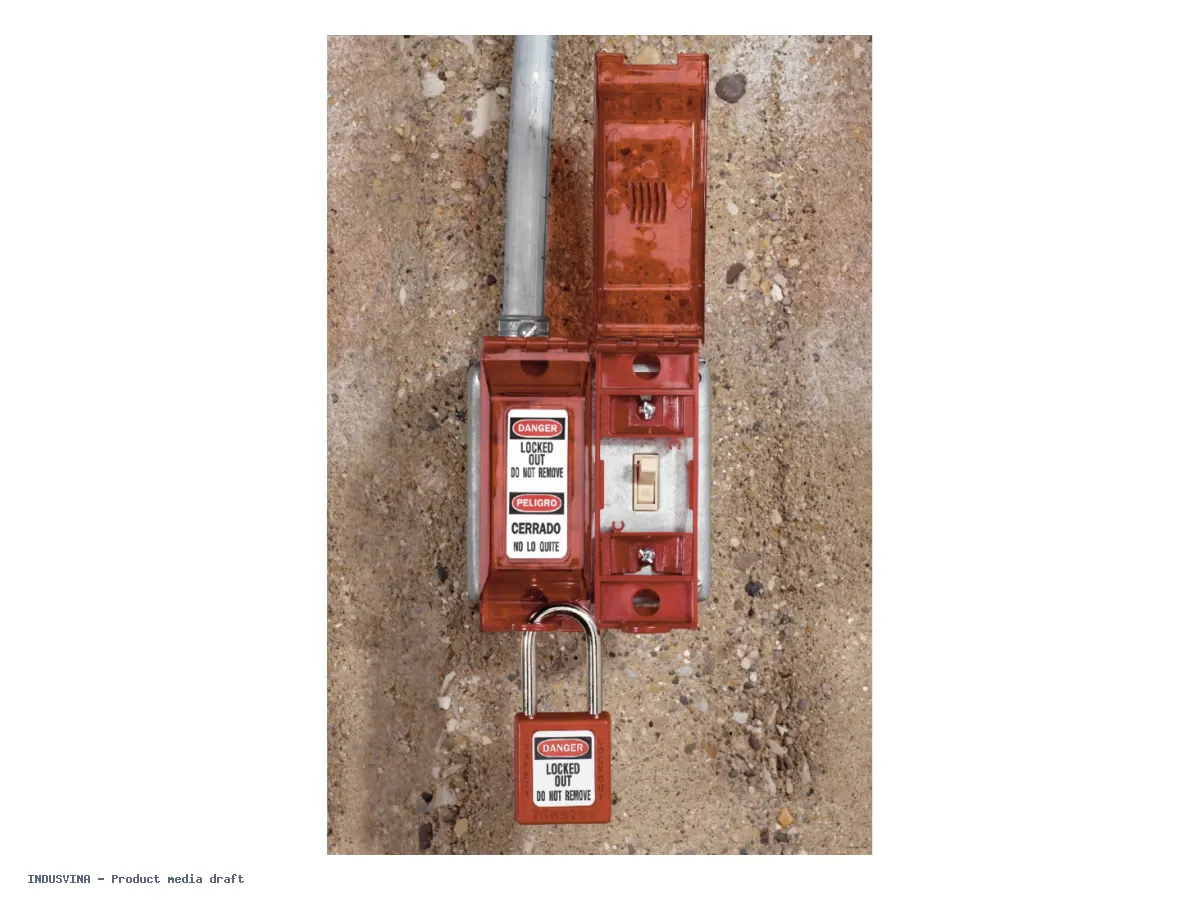

Draft usage guide: LOTO may be performed only by personnel trained and authorized under the user organization’s rules. Identify relevant electrical, mechanical, pneumatic, hydraulic, thermal, or other hazardous energy sources; shut down the equipment, isolate the sources, and address stored energy under the approved procedure. Inspect the 410RED before use: verify model identification, absence of body cracks, an undeformed shackle, normal key operation, and a legible identification label. Apply the lock to a compatible isolation point or lockout hasp, then attach a warning tag where the internal procedure requires one. Verify the safe energy state before work begins. Do not share keys, use a damaged lock, force the shackle into an incompatible location, or remove another worker’s lock. After work, check people, tools, and machine components before following the organization-approved lock removal, notification, and energy-restoration sequence.

Documents & guides
